Light-Ray LED Light Source

Engineered for comfortable, True White Illumination,
for use with or without Surgical Loupes & Dental Loupes.

headband light1 002

Headband Mounted LED
As shown – includes headband
$675.00

LED clip-on 003

Clip-on Mount LED
Loupes and frames not included
$495.00

LED direct loupe mount

Direct Loupe Mount LED
(Loupes not included)
$495.00

Specifications

Infinitely variable light intensity- to 3600 foot candles
LED Size: 1.2” Diameter
Weight: 20 Grams/.7 oz Min.
LED Intensity: 1800 foot candles
Area Illuminated: 3.5” at 16”
LED Wattage: variable
Color Temperature: 6000 k Max.
LED Intensity: 3600 foot candles
LED Life: 50,000 hrs

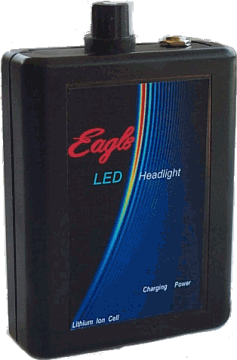

Battery Pack

Size: 2.9″ x 3.7 x 1”
Weight: 235 Grams / 8 oz
Recharge Time:
- 4 hours-85%
- 7 hours-100%
Recharges: 1,000
Illumination Time: 7 hours

Standard features

Lithium Ion Battery
Medical grade reinforced strain relief cord
Light weight
Choice of mounts
Digital charger included (can be used as a power supply if battery runs out)
Cushion-fitted case
Lifetime warranty (except battery – 5 years pro-rated)

powerpack

All specifications are subject to change due to constant product refinement
